Integrated cables
Built-in cable storage offers a convenient carry format. Confirm cable connector types and per-port ratings before sample approval.
20MC25-45W

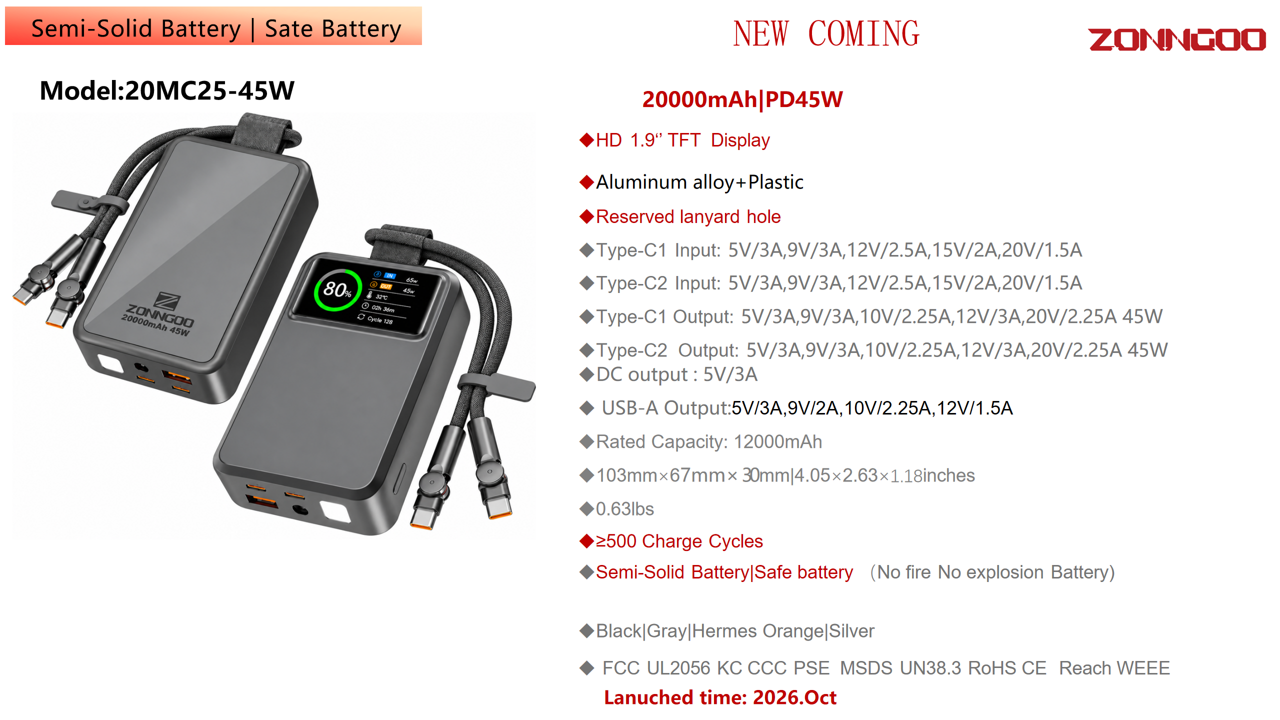

View original specification sheet ↗SEMI-SOLID-STATE LITHIUM SERIES / 20MC25-45W
45W power.
Ready to go.
20MC25-45W Fast-Charging Power Bank
20MC25-45W is a semi-solid-state configuration pairing 20,000mAh cell capacity with up to 45W wired output, integrated cables and a 1.9-inch TFT display. Designed for buyers evaluating portable charging formats with fewer loose cables.
20,000mAh cell capacity
45Wmax wired output
1.9″TFT display
Color options
Black / Gray / Hermes Orange / Silver
Pricing, MOQ, available colors and delivery schedule confirmed on enquiry. Specifications below follow the supplied model sheet.
PRODUCT DETAILS / 20MC25-45W
Power, display and cables together.
1.9-inch TFT display
A larger display presents charging information. Confirm the available data fields and display behavior on the sample.
20,000mAh cell capacity
A 30mm housing brings capacity and portable charging features together. Rated output capacity is listed separately at 12,000mAh.
THE DETAILS THAT MATTER
20MC25-45W specifications.
- Model
- 20MC25-45W
- Product family
- Semi-Solid-State Lithium Battery
- Cell capacity
- 20,000mAh
- Rated capacity
- 12,000mAh (voltage and test conditions to be confirmed)
- USB-C1 input
- 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
- USB-C2 input
- 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
- USB-C1 output
- 5V/3A, 9V/3A, 10V/2.25A, 12V/3A, 20V/2.25A
- USB-C2 output
- 5V/3A, 9V/3A, 10V/2.25A, 12V/3A, 20V/2.25A
- DC output
- 5V/3A (connector and supported use to be confirmed)
- USB-A output
- 5V/3A, 9V/2A, 10V/2.25A, 12V/1.5A
- Display
- 1.9-inch TFT display
- Housing
- Aluminum alloy + plastic
- Carry detail
- Built-in cables and reserved lanyard hole
- Dimensions
- 103 × 67 × 30mm
- Weight
- 0.63lb (approximately 286g)
- Color options
- Black / Gray / Hermes Orange / Silver
- Cycle-life specification
- ≥500 cycles listed in supplied sheet; retention threshold and test conditions to be confirmed
Maximum output depends on the device, protocol, cable and operating conditions. Per-port maximums must not be added together as a combined-output rating. Battery chemistry, market certifications and cycle-life conditions require exact-model documentation.
YOUR BRAND. YOUR PROJECT.
Build your next SKU
around 20MC25-45W.
Share your target users, destination market, capacity requirements and sales channel. We will review the product configuration and branding options with you.
Send Your Requirements →Product & color
Choose the exact power rating, capacity and finish.
Logo & packaging
Share brand artwork and retail packaging requirements.
Sample approval
Confirm appearance, device compatibility and charging checks.
Order & shipment
Agree on schedule, inspection scope and required documents.
BEFORE YOU ORDER
Questions about 20MC25-45W.
Can we customize the logo and packaging?
Send your artwork, preferred color, packaging requirements, quantity and destination market. ZONNGOO will confirm available options and sample approval steps for this exact model.
How should we evaluate the charging performance?
Test the sample with your target devices and cables. 45W is the model’s listed maximum wired output; it is not a guarantee of simultaneous output across every port. Confirm protocol support, cable ratings and shared-port power allocation before ordering.
What is the usable output capacity?
The sheet lists 20,000mAh cell capacity and 12,000mAh rated output capacity. These measurements use different conditions. Request the nominal voltage, rated output voltage and discharge test conditions before comparing usable energy.
Can I get a sample, MOQ and delivery schedule?
Yes—send the model, quantity, branding requirements and delivery destination to request a quotation. Sample availability, charges, MOQ and lead time are confirmed for each configuration.
Which safety and transport documents should we review?
Request model-specific battery information, test reports for your market and relevant transport documentation. The supplied sheet lists certification marks and a cycle-life figure; confirm report coverage, test conditions and validity before approval.
Semi-Solid-State Lithium Battery
Compare the series.
Compare capacity, output and form factor. Select a model to review its detailed specifications.
| Model | Product group | Capacity | Wired / wireless max | Key details |
|---|---|---|---|---|
| 5MC2 ↗ | Magnetic display power banks | 5,000mAh | 20W / 15W | 1.14-inch TFT display |
| 5MC2 Qi2 ↗ | Magnetic display power banks | 5,000mAh | 20W / 15W | 1.14-inch TFT display |
| 5PMC27 ↗ | Foldable stand power banks | 5,000mAh | 20W / 15W | Foldable stand |
| 10MC9 ↗ | Magnetic display power banks | 10,000mAh | 20W / 15W | 1.14-inch TFT display |
| 10MC9 Qi2 ↗ | Magnetic display power banks | 10,000mAh | 20W / 15W | 1.14-inch TFT display |
| 10MC27 ↗ | Foldable stand power banks | 10,000mAh | 20W / 15W | Foldable stand |
| 10MC6 ↗ | Magnetic glass-finish power banks | 10,000mAh | 20W / 15W | Double-sided glass |
| 10MC2B Qi2.2 ↗ | Magnetic display power banks | 10,000mAh | 40W / 25W | Higher listed wireless output |
| 10MC25-22.5W ↗ | Built-in cable fast-charging power banks | 10,000mAh | 22.5W / — | Integrated cables |
| 10MC25-45W ↗ | Built-in cable fast-charging power banks | 10,000mAh | 45W / — | Integrated cables |
| 20MC25-45W ↗This model | Built-in cable fast-charging power banks | 20,000mAh | 45W / — | Integrated cables |
| 20MC25-65W ↗ | Built-in cable fast-charging power banks | 20,000mAh | 65W / — | Integrated cables |
| 10C6 ↗ | Compact built-in cable power banks | 10,000mAh | 35W / — | Compact PC housing |
| 10MC32 ↗ | Low-temperature application power banks | 10,000mAh | 10W / — | Integrated cable format |
